Name: AVMATRIX Shark H4 PLUS 4-Channel HDMI Video Switcher with 10.1" IPS Display
SKU: 1656
Availability: InStock

Features

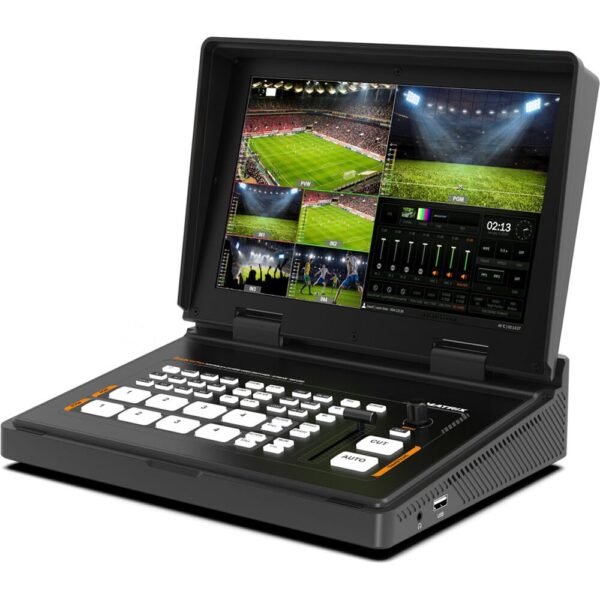

Switch up to four HDMI video inputs while monitoring the program feed with the portable Shark H4 PLUS 4-Channel HDMI Video Switcher with 10.1″ IPS Display from AVMATRIX. This model features a folding design with a 10.1″ IPS LCD screen on the lid. Use the USB-C output together with your computer for capture and live streaming using your computer, and record directly from the unit using the USB-A output or SD card slot.

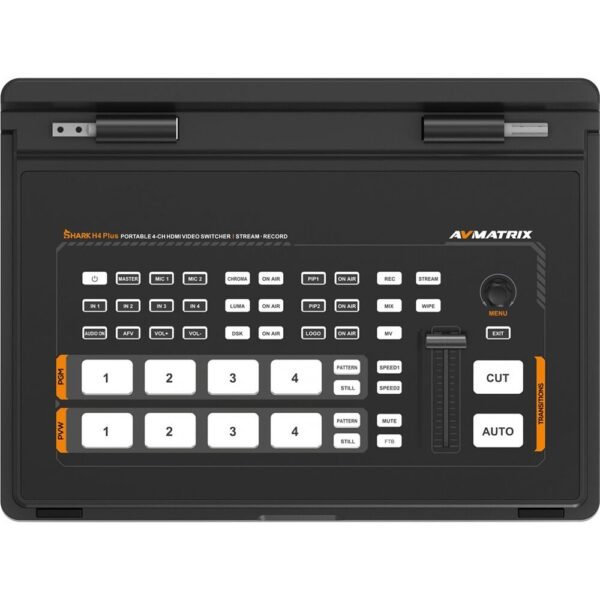

This compact switcher supports up to 1080p60 video input and output with embedded audio, and it offers audio mixing using the two analog stereo 3.5mm mic/line inputs and embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.

USB Capture & Streaming

Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming using software like OBS, Skype, Teams, VLC, Zoom, or vMix.

10.1″ Full HD IPS Display

The switcher features a 10.1″ 1920 x 1080 IPS LCD display that provides multiview, preview, program, audio meters, time clock, and menu configuration.

USB and SD Card Recording

Record your program to an SSD or flash drive in MP4 format using the USB-A recording output, or utilize an optional SD card for in the built-in SD card recording slot.

Live Stream via Ethernet

The LAN port supports IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.

Software Remote Control

Offers easy control of all settings and operations through the control software, including transitions, audio configurations, media management, and more.

Multiple Interfaces

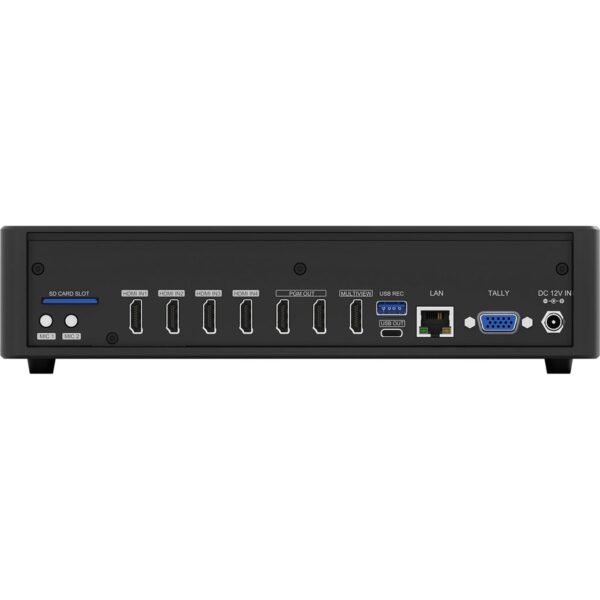

Multiple interfaces include four HDMI inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports. The outputs can all be configured to pass input, preview, program, clean program, and color bars.

Other Features

Enhanced chroma key
Professional audio mixer with embedded and analog audio inputs
Import up to 39 default patterns, 16 imported images, 16 captured images, and two color generators via USB
PiP, PoP, logo overlay, transition effects
